(주)엔브이티는 진공코팅 설비를 전문적으로 설계/제조하는 기업입니다.

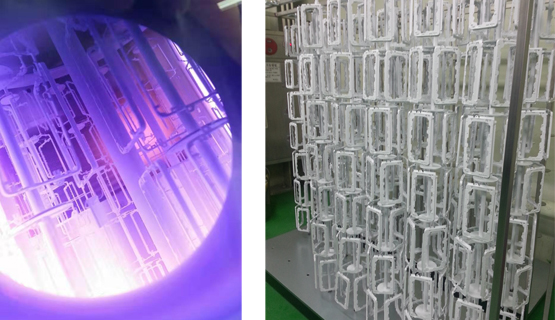

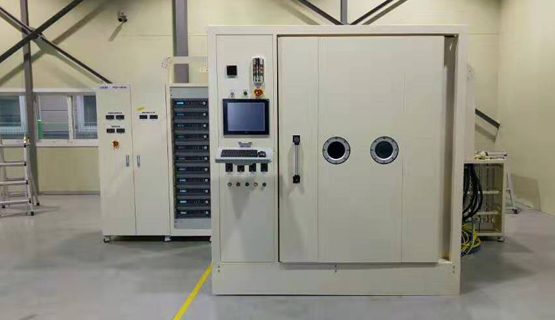

This equipment is a device for forming aluminum metal film on the surface of die-casting alloy, SUS, Mg, PEAK and other products by magnetron sputtering.

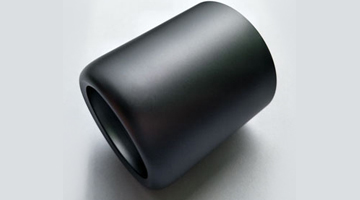

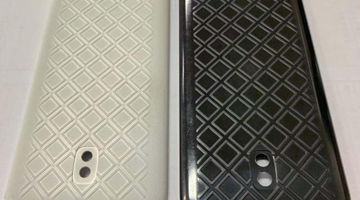

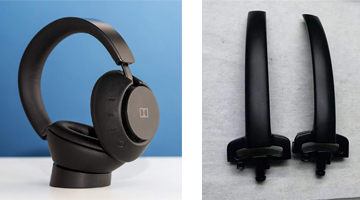

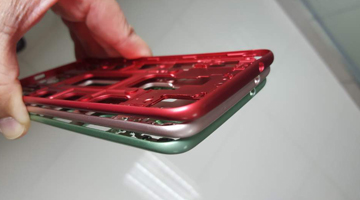

Aluminizable materials (die-cast alloys, SUS, Mg, PEAK, etc.) use anodizing technology to present a variety of colors and gorgeous appearance.
| Description | Spec. | Etc. | |
|---|---|---|---|
| BODY | Vacuum Chamber | W1,250 L1,250×H1,600 | |
| Deposition module | Sputtering | ||
| Planetary jig module | 16 Axis | ||
| VACUUM PUMP | Oil diffusion pump | 28”, 1Set | 5.0×10-5 torr ↓ |
| Oil rotary & booster pump | SV630B & WSU2001 | ||
| Control System | AUTO Mode | ||
| OPTION | Chiller | 75 RT | |
| Floor Area | L6,500×D6,500×H3,000 | Weight / 5.0t | |
