(주)엔브이티는 진공코팅 설비를 전문적으로 설계/제조하는 기업입니다.
This equipment is a Ceramics Coating device on the surface of mobile phone casing, outer frame, buttons, watches, tableware and other products using magnetron sputtering and arcing.

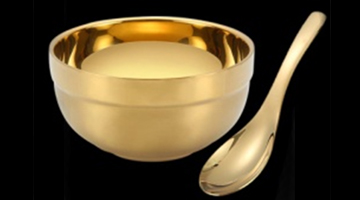

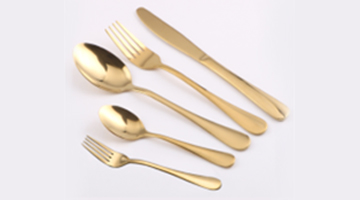

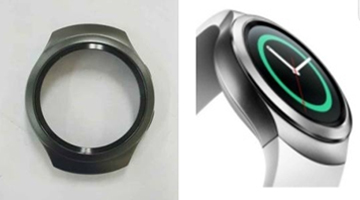

Mobile phone case, frame, buttons, watch, tableware case can be presented in a variety of colors and gorgeous appearance.
| Description | Spec. | Etc. | |
|---|---|---|---|
| BODY | Vacuum Chamber | Φ1500×1700H | |
| Deposition module | ARC, Sputtering | ||
| Planetary jig module | 18 Axis | ||
| VACUUM PUMP | Oil diffusion pump | 24”, 2Set | 5.0×10-5 torr ↓ |
| Oil rotary & booster pump | SV630B & WSU2001 | ||
| Control System | AUTO Mode | ||
| OPTION | Chiller | 30 RT | |
| Floor Area | L4,500×D6,500×H2,500 | Weight / 5.0t | |
