(주)엔브이티는 진공코팅 설비를 전문적으로 설계/제조하는 기업입니다.

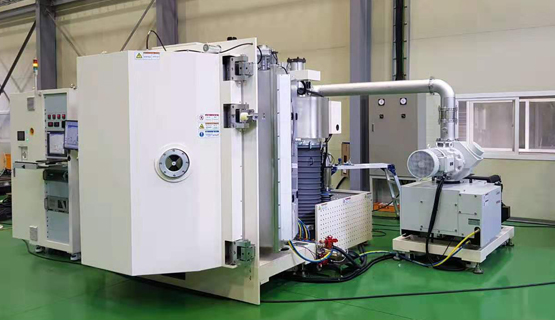

This system enables multilayer coating to mobile phone injection mold case, etc. using magnetron sputtering method.

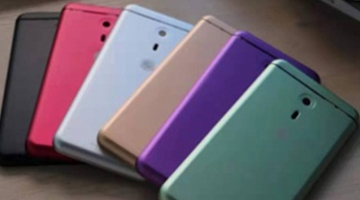

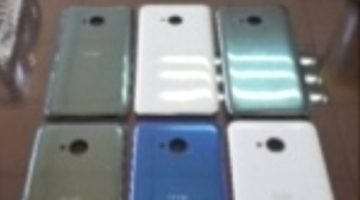

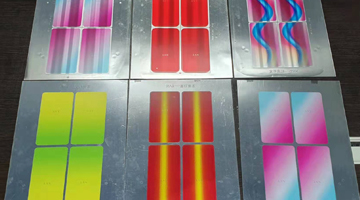

Multi-color coating to injection mold for mobile phones (bezel, battery cover, etc.)
| Description | Spec. | Etc. | |
|---|---|---|---|
| BODY | Vacuum Chamber | Φ1600×1600H | |
| Deposition module | Sputter + Evaporation | ||
| Planetary jig module | Φ280 × 12 Axis | ||
| VACUUM PUMP | Oil diffusion pump | 24", 2Set | 5.0×10-5 torr ↓ |
| Oil rotary & booster pump | SV630B & WSU2001 | ||
| Control System | AUTO Mode | ||
| OPTION | Chiller | 25RT | |
| Poly cold | 100,000ℓ/sec | ||
| Floor Area | L4500×D6500×H2300 | Weight / 5.0t | |
